NEW! The powerful duo for complex powder coatings

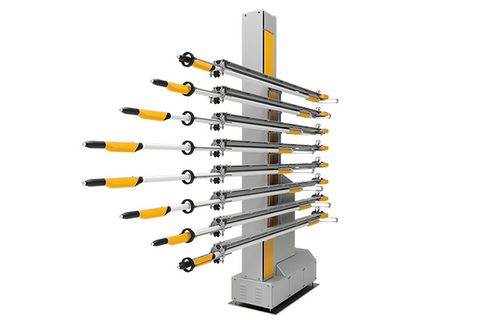

The new vertical reciprocator ZA16 in combination with the new gun axis UA05 by Gema guarantees perfect coating results for complex application tasks and difficult object geometries.
The vertical reciprocator ZA16 has a loading capacity of up to 130 kg and can be equipped with max. 8 gun axes type UA05. The compact design allows high density mounting with 110 mm vertical gap between the automatic guns. This enables penetration into minimal recess areas and automatic coating of even the most complex geometries. The UA05 axis has a maximum stroke-length of 1850 mm and is therefore ideal for the coating of big parts.
The modern drive technology of the UA05 axis with servo motor and toothed belt transmission allows pinpoint feed motion of the automatic guns as well as high dynamic of the infeed movement. As a result, complex parts are coated in high quality and challenging application tasks are solved optimally. Other product highlights are the integrated cleaning function of the guns via blow-off for a clean working environment and the compact and space-saving design of both axes. The axes can be programmed with MagicControl 4.0 control unit and can be integrated into the control system via Bus-/CAN-bus technology.
