Multi-gun axis UA05-2, UA05-3
The solution uses a single positioning axis for the horizontal alignment of up to 3 automatic guns for top or underside coating of complex components and XXL parts.
Main Features Overview

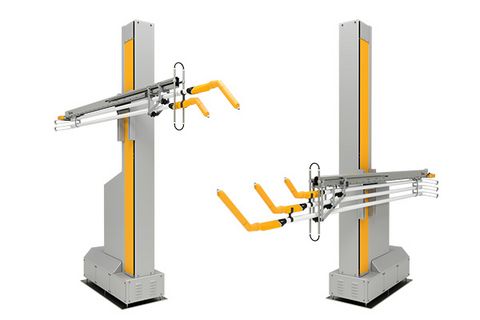

UA05-2 and UA05-3
The solution is available in two versions, UA05-2 with 2 automatic guns and UA05-3 with 3 automatic guns for horizontal reciprocating movement under or above the part.
Space-saving, compact design
The compact design allows the guns to be arranged in a single row in a grid dimension of only 87 mm.

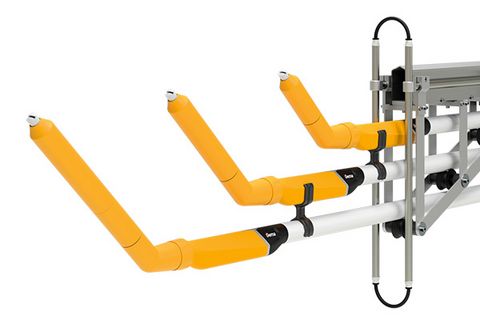

Nozzles and extensions
The solution is expandable with angled nozzles and extensions to further increase the application range.
Under guns, over guns and depth contour guns
The solution allows the automatic coating of tricky areas and offers a flexible approach for top-, underside- and deep contour coating.
Latest drive technology
The latest drive technology with servo motors and toothed belt transmission pinpoint the feed motion of the automatic guns to the optimum application position.
