Round Jet Nozzles NS04, NS09 (mini)

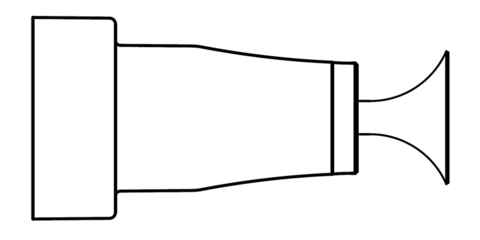

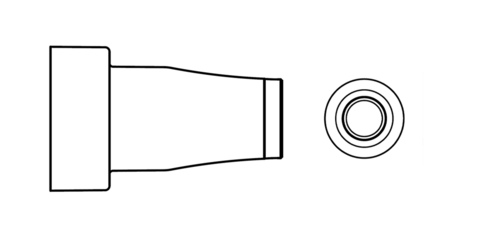

NS04

Powder Cloud
Depends on deflector

Remarks
-

Deflector
Yes

Order information
See Operation Manual

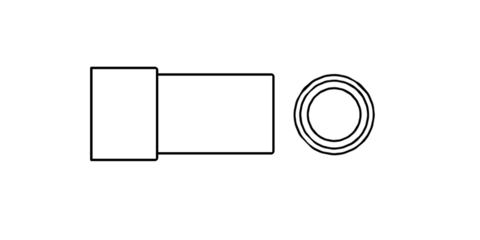

NS09 (mini)

Powder Cloud
Depends on deflector

Remarks
In combination with extension Ø 25 mm, reduced diameter to penetrate into cavities. Powder cloud like NS04.

Deflector
Yes

Order information
See Operation Manual



Application

For Manual Coating

Flat Surfaces
Recesses
Complex Parts

For Automatic & Robot Coating

Flat Surfaces
Recesses
Complex Parts

NS04
NS09

For Manual Coating

Flat Surfaces
Recesses
Complex Parts

For Automatic & Robot Coating

Flat Surfaces
Recesses
Complex Parts

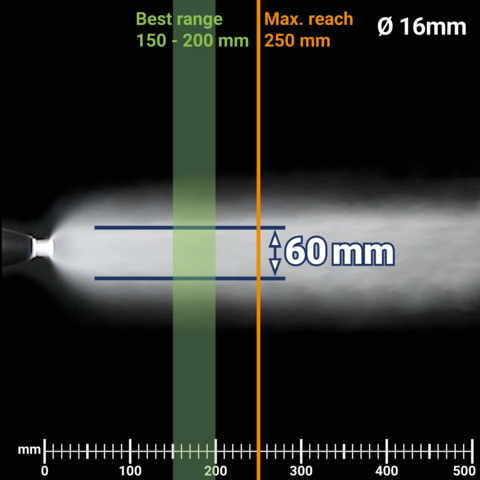

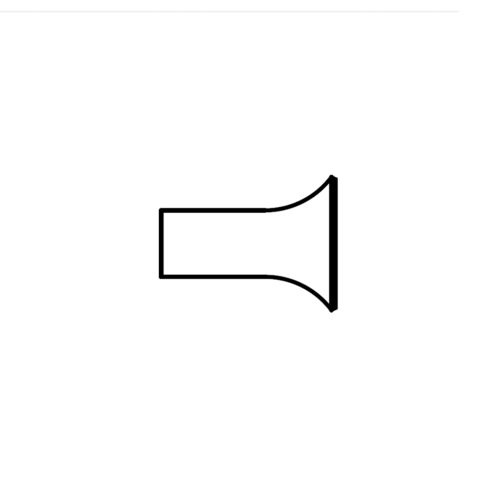

Deflector Diameter
16 mm

Powder Cloud Speed
at [4 Nm3/h]
Low

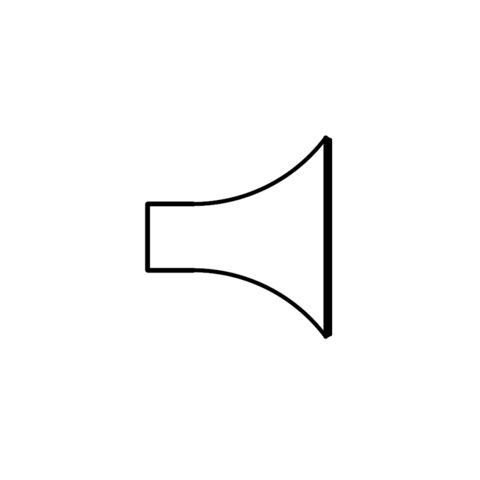

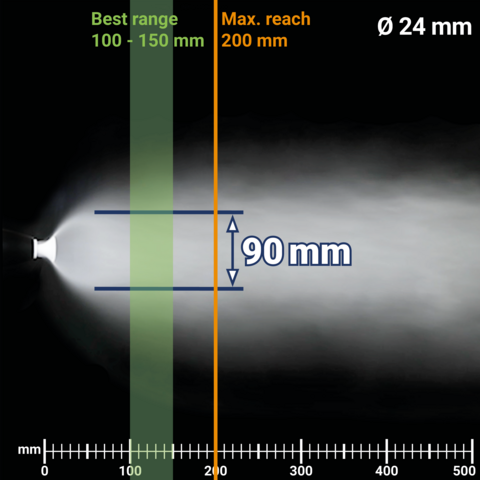

Deflector Diameter
24 mm

Powder Cloud Speed
at [4 Nm3/h]
Low

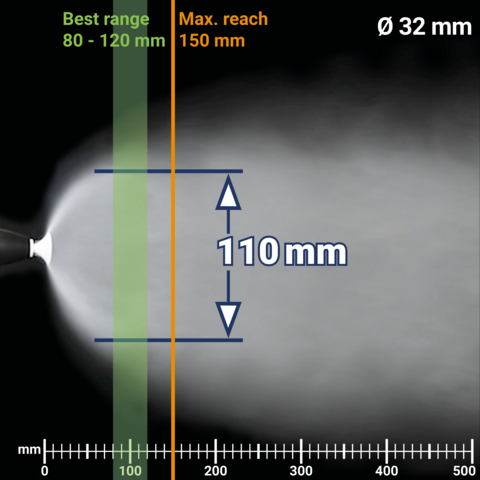

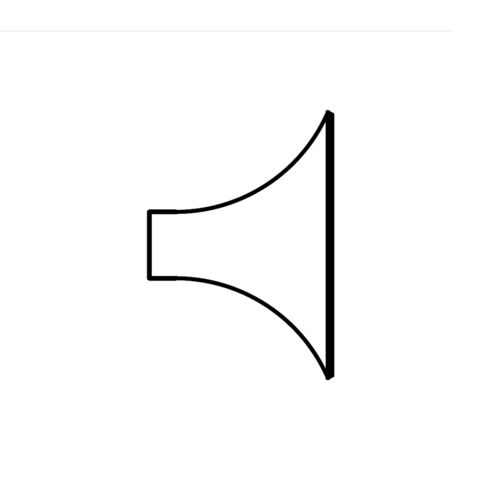

Deflector Diameter
32 mm

Powder Cloud Speed
at [4 Nm3/h]
Very low

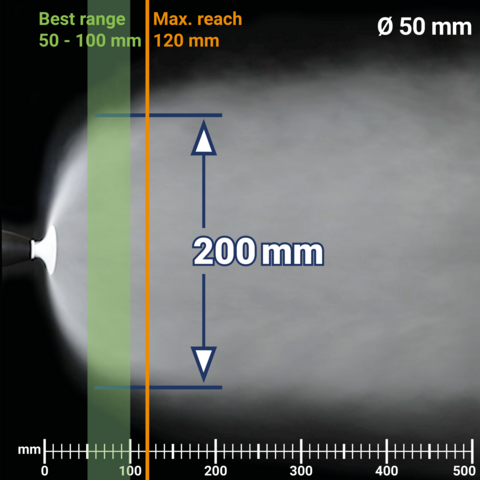

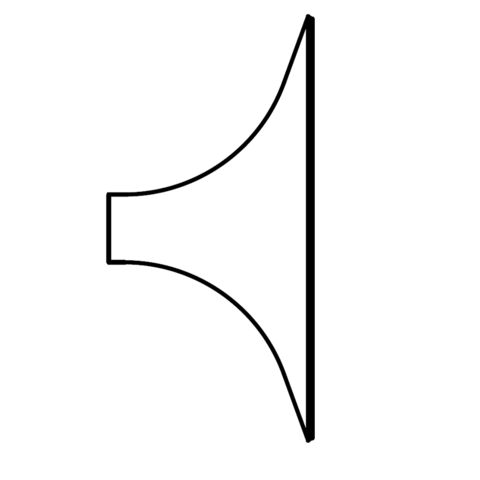

Deflector Diameter
50 mm

Powder Cloud Speed
at [4 Nm3/h]
Very low
